Electric transformer: How Does It Operate?

For over a century, the transformer (TF) has played a pivotal role in electrical power distribution systems, catering to industries, businesses, and households alike.

Without transformers, the need to bridge the gap between power plants and diverse consumer endpoints would be a logistical challenge. Hence, transformers significantly enhance the efficiency of electricity distribution.

In this exploration, we delve into the fundamentals of transformers, understanding their operational principles, exploring various types available in the market, and recognizing their paramount importance and versatility.

Understanding the Transformer's Functionality

At its core, a transformer operates on the principle of electromagnetic induction. This ingenious device facilitates the increase or decrease of voltage and current intensity in an electric current (alternating), all while maintaining a constant power output.

Transformers play a crucial role in ensuring the safety and efficiency of electricity distribution systems, especially over extended distances. The most effective way to transport electrical current from power plants is at high voltage. However, delivering such high-voltage currents directly to homes would jeopardize electrical installations and connected appliances. Therefore, transformers are indispensable in reducing the voltage to safe and manageable levels for domestic and commercial use.

In essence, transformers not only facilitate seamless electricity distribution but also serve as guardians, shielding electrical installations from potential harm.

Understanding the Inner Workings of Transformers

Transformers, at their core, consist of three fundamental components: the magnetic core, the primary winding, and the secondary winding.

In the realm of physics, the functionality of a transformer is rooted in Faraday's Law of Electromagnetic Induction, which states:

"The rate of change of the flux linkage with respect to time is directly proportional to the induced electromagnetic field in a coil or conductor."

The crux of transformer operation lies in the mutual electromagnetic induction occurring between two circuits connected by a shared magnetic link. This mutual induction is the mechanism that facilitates the transfer of energy from one point to another.

The primary winding, connected to an electrical source, generates the initial magnetic flux. Importantly, the two coils are electrically isolated from each other. The induced electric flux in the primary winding traverses the magnetic core and establishes a connection with the secondary winding through low reluctance, maximizing the linkage.

The magnetic core acts as a bridge, rerouting the electric flow to the secondary winding, thereby creating a magnetic circuit that completes the current flow. It is worth noting that in specific transformer types, the secondary winding can produce an impulse when both windings are wound on the same core, allowing the generated magnetic field to induce movement.

Technically, transformers of all types feature a magnetic core constructed from stacked steel sheets, maintaining a minimal air gap to ensure the continuity of the magnetic path.

The primary winding initiates an alternating flux in the core, serving as the mechanism through which a transformer transfers alternating current energy from one circuit to another. This transformative process involves converting electrical energy from one value to another, altering voltage while preserving frequency.

Different Types of Transformers

Transformers come in various types, each serving distinct purposes based on functionality, applications, or other classifications. While it's impractical to enumerate all existing transformer types in this article, we'll explore some of the most pertinent ones.

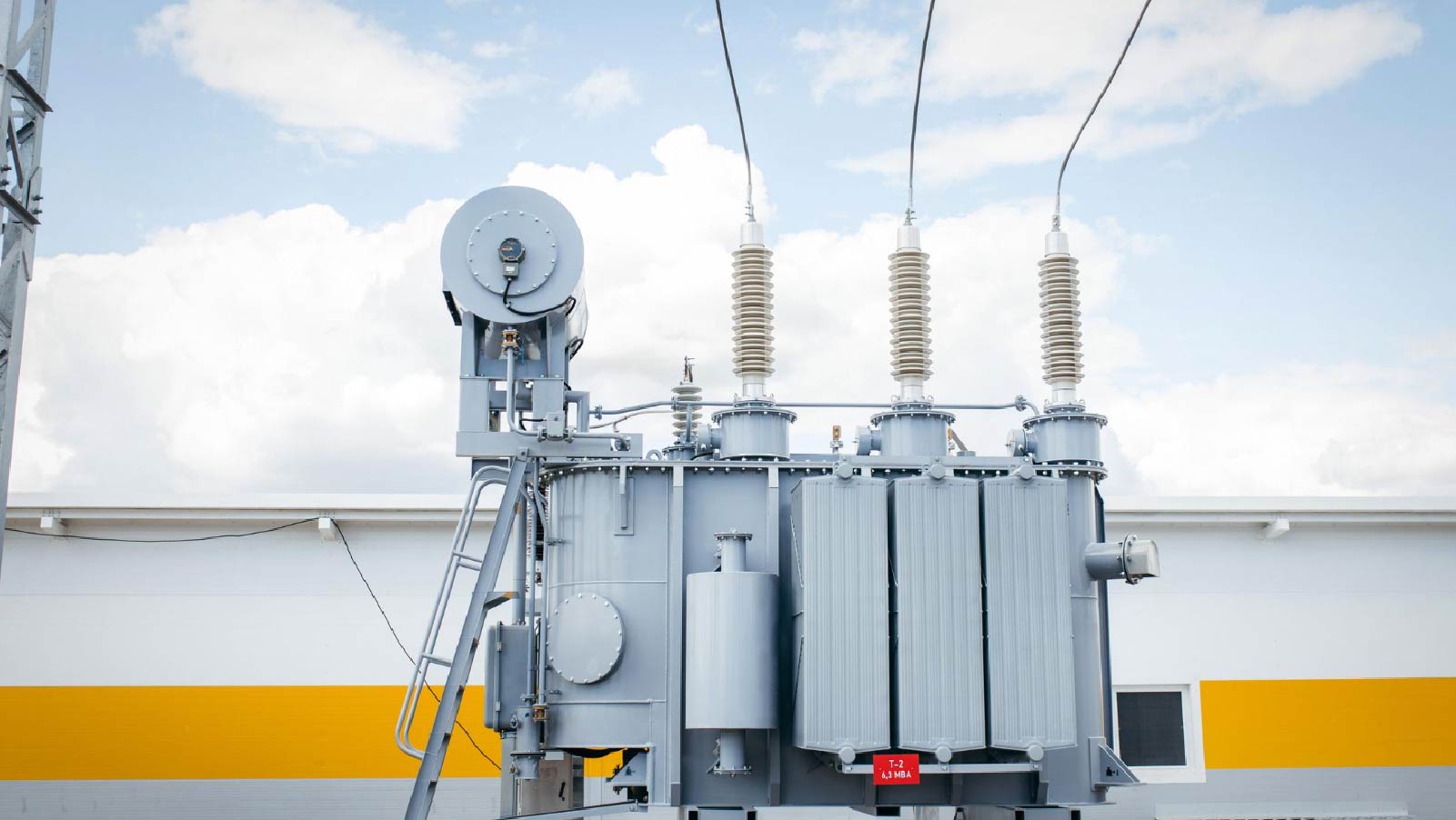

Power Transformer

One of the primary and extensively utilized transformer classifications is the power transformer. These transformers play a crucial role in both increasing and decreasing voltage within power plants and substations. Operating at full load and managing high voltages is their forte, as they are specifically designed for such conditions. Power transformers tend to be substantial in size and weight due to the robust internal insulation they incorporate. Generally, they are not directly connected to individual residences or businesses.

Within the power transformer classification, several notable types include:

• Laminated core
• Toroidal
• Autotransformer
• Induction regulator

Distribution Transformers

Distribution transformers, also known as service transformers, represent a crucial category of power transformers responsible for delivering the ultimate voltage in the electrical distribution system.

In essence, these transformers play a pivotal role in transforming and conveying the current to the end consumer, be it households, businesses, or other entities.

These transformers can be further classified based on several key criteria:

• Voltage class
• Mounting location – pole or underground vault
• Liquid or dry-type insulation
• Single-phase or three-phase

Traction Transformer

In particular, traction TFs are employed to convert the power produced by the traction effect when trains are moving. The electric motors receive this energy after that.

Common TF normally run at 50 or 60 Hz, however this type of TF may operate at lower frequencies—as low as 16.67 Hz.

Instrument Transformer

Potential or Voltage Transformer

This transformer variant is designed to lower the voltage within a high-voltage circuit, facilitating the measurement of voltage drops. It is strategically connected across or in parallel to the designated lines for diverse measurement tasks, including the recording of phase errors.

Within the category of Potential or Voltage Transformers, three distinct types are identified:

• Electromagnetic Type: This transformer utilizes electromagnetic principles to accomplish the reduction in voltage.
• Condenser Type: Employing capacitor-based technology, this type achieves the desired voltage reduction.
• Optical Type: Leveraging optical mechanisms, transformers of this type contribute to the voltage transformation process.

These variations within the Potential or Voltage Transformer category offer diverse approaches, catering to specific measurement requirements and accommodating technological preferences.

Current Transformer

The current transformer is another essential type of measurement and protection transformer. Its functionality is akin to that of the voltage transformer; however, it is typically connected in series, enhancing precision levels. Current transformers are instrumental in delivering a secondary winding flow comparable to that of the primary winding.

In addition to current transformers, there are several other types of transformers serving specific purposes:

• Pulse Transformers: Designed to handle and modify electrical pulses, pulse transformers play a crucial role in applications where precise pulse shaping and control are required.
• RF Transformers (Radio Frequency Transformers): Tailored for applications in the radio frequency spectrum, RF transformers efficiently transfer signals within this range, ensuring optimal performance in communication systems.
• IF Transformers (Intermediate Frequency Transformers): IF transformers are specialized transformers employed in intermediate frequency stages of electronic systems, contributing to signal processing and amplification.
• Audio Transformers: Specifically engineered for audio applications, these transformers are crucial in transmitting and transforming audio signals, ensuring fidelity and quality in audio reproduction.

Each of these transformer types serves a unique function, addressing specific requirements in diverse applications across the realm of electronics and electrical engineering.

Safety Tips for Working with Transformers

• ISO 9001 Compliance: Ensure that transformers meet the requirements of ISO 9001 for quality management. Adherence to these standards establishes a foundation for safe and reliable transformer operation.
• Monitoring Transformer Behavior: Regularly observe the performance of transformers. If you notice any unusual behavior, promptly remove the transformer from the system for thorough inspection and maintenance.
• Pre-Installation Inspection: Conduct a pre-installation inspection, checking for a burning smell, damaged parts, or any components out of place. Address any issues before putting the transformer into service.
• Current Input Disconnection: Keep the current input disconnected when working with transformers. This precaution minimizes the risk of electrical accidents and ensures the safety of personnel handling the equipment.
• Protective Equipment: Always wear appropriate protective gear, including insulated gloves and safety goggles. Carefully observe the voltage output indication on the equipment to be aware of potential electrical hazards.
• Knowledge of Maximum Voltage: Familiarize yourself with the maximum voltage capacity of the transformers. Additionally, use multiple transformers when needed to distribute the load evenly and prevent overloading.
• Metal Object Avoidance: Keep small metal objects like nuts and bolts away from transformers. Preventing contact with metallic items reduces the risk of short circuits and enhances overall safety during transformer operation.
• Grounding: Ensure proper grounding of transformers to mitigate the buildup of static electricity. Proper grounding is essential for preventing electrical discharge and maintaining a safe working environment.
• Protection from Water or Liquids: Safeguard transformers and their components from contact with water or other liquids. Preventing exposure to moisture helps prevent electrical hazards and equipment damage.

Summarizing

The significance of high-quality transformers in an electrical distribution system cannot be overstated, as they play a crucial role in ensuring reliable electrical service and network security. While various consumer needs may necessitate different types of transformers, power and distribution transformers are commonly employed for both residential and commercial purposes.

For those seeking quality in power transformers, the Vandana Transformers stands out as a potential solution, offering a guarantee of quality and robust support. Choosing the right transformer is essential for maintaining an efficient and secure electrical infrastructure.
